Use of eKuiper management console


From eKuiper version 0.9.1, whenever a new version of eKuiper is released, the corresponding version of the management console will be released. This article uses a practical example to illustrate how to use the management console to operate and manage eKuiper nodes. In the article, the data will be subscribed from the MQTT server, and be sent to the specified file after processing through the rules written by eKuiper. The demonstration is as follows:

  • Create a eKuiper node through the management console
  • Create a stream to subscribe to the data in the MQTT server. This example demonstrates subscribing to the MQTT server. The relevant information is shown below.
    • Address: tcp://
    • Topic: devices/device_001/messages
    • Data: {"temperature": 40, "humidity" : 20}
  • Create a rule to calculate the subscribed data and write the data to the sink "This example demonstrates writing the subscribed message to a file".
  • eKuiper currently supports multiple sources and sinks. Users only need to install the corresponding plugins to achieve the corresponding function. "The source of this example is MQTT source, which has built-in support without the need of installation; the sink is a file, which does not have built-in support and needs to be installed separately."

Architecture design

  • UI end: a visual interface, easy for users to operate
  • Kuiper-manager: Management console, which essentially is a reverse HTTP proxy service, providing the services of user management, permission verification. It can be deployed in the cloud or at the edge
  • eKuiper instance: managed eKuiper node instance, eKuiper-manager can manage multiple eKuiper nodes at the same time


Install the management console

In production, eKuiper is usually installed at the edge and eKuiper manager is installed at the gateway or cloud to manage one or more eKuiper instances at the edge. In this case, the two are deployed on different physical machines and need to be deployed separately. This chapter will use this approach for deployment.

During test, it is more handy to use docker compose to install and deploy both products with one click. Please refer to Run with Management Console for details.

Install eKuiper

  • Pull eKuiper's Docker image from Docker Image Library. Since it is required to install the plugin in this article, you must use the ekuiper:1.8-slim image (ekuiper:1.8-alpine image is relatively small and easy to install, but due to the lack of some necessary library files, the plug-in cannot run normally. The ekuiper:1.8-dev image is the development version, which is suitable for use in the development phase).

    docker pull lfedge/ekuiper:1.8-slim
  • Run the eKuiper container (for convenience, we will use the public MQTT server provided by EMQ, and the address can be set by the -e option when running the container). If you want to access the eKuiper instance through the host, you can expose port 9081 by adding the -p 9081:9081 parameter when starting the container.

    # docker run -d --name kuiper -e MQTT_SOURCE__DEFAULT__SERVER="tcp://" lfedge/ekuiper:1.8-slim

    When the container is running, the MQTT server address can be set through the -e option, and the data is written to the MQTT source configuration file, which can be viewed by the following command:

    # docker exec -it kuiper sh
    # cat etc/mqtt_source.yaml

    Some output of this file is shown below, and the value of server is set to tcp://

      concurrency: 1
      qos: 1
      server: "tcp://"
      sharedSubscription: true

Install management console

  • Pull the Docker image of kuiper-manager from Docker Image Library, and 1.8-ief is a dedicated image for Huawei IEF users, This example uses the 1.8 image.

    docker pull emqx/ekuiper-manager:1.8
  • Run the Kuiper-manager container and expose port 9082. Whereas DEFAULT_EKUIPER_ENDPOINT can be used to specify the default managed eKuiper address, which should be set to the actual ip of the machine where the eKuiper is located.

    docker run --name kuiperManager -d -p 9082:9082 -e DEFAULT_EKUIPER_ENDPOINT="http://$your_ekuiper_host:9081" emqx/ekuiper-manager:1.8

Getting started

Login to ekuiper-manager

You need to provide the address, username, and password of kuiper-manager when logging in, which is shown below:

  • Address: http://$yourhost:9082

  • User name: admin

  • Password: public


Create a eKuiper service

When creating a eKuiper service, you need to fill in the "service type", "service name" and "endpoint URL".

  • Service Type: Select Direct Connect service (Huawei IEF service is dedicated to Huawei users).

    name: self-made, this example uses example.

  • Endpoint URL: http://$IP:9081, the IP acquisition command is as follows:

    docker inspect kuiper |  grep IPAddress

The example of creating a eKuiper service is shown in the figure below. If the port is exposed to the host, then the 9081 port address on the host can also be used directly.


Create a stream

Create a stream named demoStream, as shown below:

  • Used to subscribe to MQTT server messages with the address tcp://

  • The message topic is devices/device_001/messages

  • The stream structure definition contains the following two fields.

    • temperature: bigint
    • humidity: bigint

    Users can also remove "whether it is a stream with structure" to define a schemaless data source.

  • "Stream Type" can be left unselected. If not selected, it is "mqtt" by default, or you can directly select "mqtt" as shown in the figure below

  • "Configuration Group", similar to "Stream Type". If not selected, "default" is used by default

  • "Stream format", similar to "Stream Type". If not selected, the default "json" is used


As shown above, the "default" configuration group is used. Users can also write their own configuration according to their needs. The specific operation is to click Source Configuration on the page of creating a steam, Jump to the configuration page, expand the type of configuration you need, and click the plus sign to create source config and a dialog box will pop up as shown below.



Create a rule

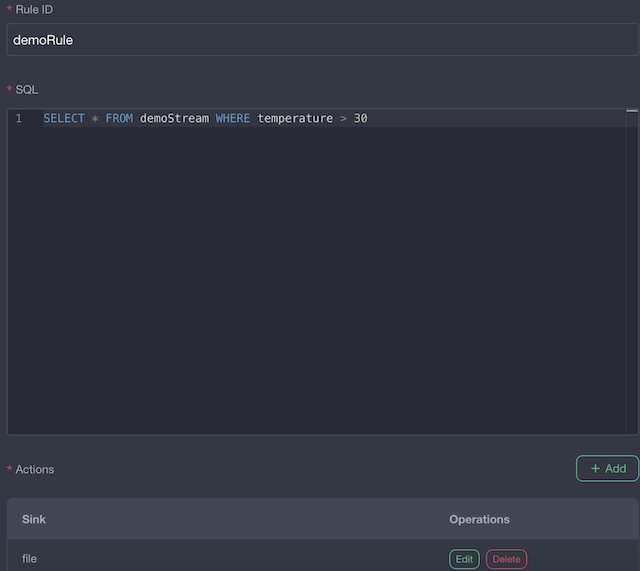

As shown in the figure below, a rule named demoRule is created to filter out the data with temperature> 30 in the data. The SQL editor can give hints during the user's SQL writing process to facilitate the user to complete the SQL writing.


Click the "Add" button and a dialog box will pop up as shown below. The file path of /ekuiper/demoFile where the input result is stored is input . More information about the file sink can be found in Help File. The target file is in the Beta state and cannot be used as an actual production environment.


After the rule is created, if everything goes well, the rule is running.

View execution results

Enter the eKuiper container to create a file:

# docker exec -it kuiper sh
# touch demoFile
# tail -f demoFile

Use the MQTT client tool mosquitto_pub to send the sensor data to the topic devices/device_001/messages of the MQTT server tcp://, and the command is as follows. If everything goes well, the file named demoFile will receive data: {"temperature": 40, "humidity": 20}.

# mosquitto_pub -h -m '{"temperature": 40, "humidity" : 20}' -t devices/device_001/messages

View more information of the rules

As shown in the figure below, there are three buttons in the options. Readers can click to try it out.

  • Rule running status
  • Restart rules
  • Delete rules


Extended reading

  • How to display custom plugins in the installation list of the management console: eKuiper provides a plugin extension mechanism, and users can implement custom plugins based on the extended interface. On the management console, users can install plugins directly through the interface. If readers have customized plugins and want to show them in the installation list of the management console, this article can give readers some reference.
  • If the readers want to develop their own plug-in, they can refer to Plugin Development Tutorial for more information.
  • EMQ edge-stack project: This project allows users to install and test EMQ edge series products more easily, realize industrial data analysis, edge data aggregation, and eKuiper-based edge data analysis and other one-stop edge solutions.
